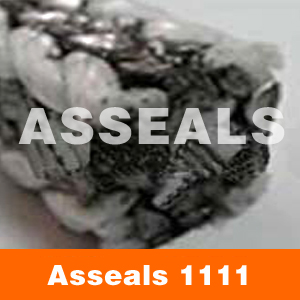

AS 1111 Graphite packing with (G)PTFE corners
Item: AS 1111
Description: Can be used in many demanding applications, both dynamic and static. Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.
PDF:
Hits: 1067

Specification:
SERVICE LIMITS:
Style
Aimlon 1111
Temperature
+2800C
Pressure
Shaft speed
Rotating
25 bar-25m/s
Reciprocating
100 bar-2m/s
Valve
300 bar-2m/s
PH Range
0~14
Density(appr.)
1.3~1.5 g/cm3

FORMS OF SUPPLY:
in coils of 2 to 5 kg, other package on request.
as packing rings--- R1111 etc.
as pre cut length
