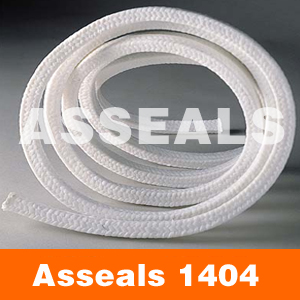

AS 1404 Sinered PTFE packing
Item: AS 1404
Description: PTFE has characteristics of excellent anticorrosion, good self-lubrication and non-sticking. However, it is also substance with low heat conductivity, cold flow and great thermal expansion coefficient. All of Aiflon PTFE packings are designed for every applications. Especially suited for high pressure valves, plunger pumps, agitators, mixers etc. and where contamination is not permitted.
PDF:
Hits: 931

Specification:
SERVICE LIMITS:
Style
1404
Pressure
20 bar
15 bar
150 bar
100 bar
250 bar
200 bar
Shaft speed
10m/s
Density
1.75 g/cm3
Temperature
-150~+260oC
PH range
0~14









FORMS OF SUPPLY:
in coils of 2 to 5 kg, other weight on request;  as precut length;
as packing rings----R1404
