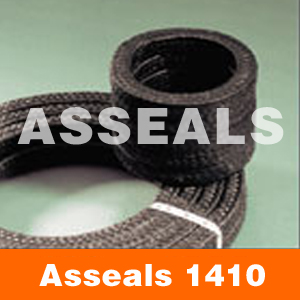

| AS 1410 Sintered Graphited PTFE Packing |
| Item: AS 1410 |
| Description: For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents. |
PDF:
|
 |
| Hits: 969 |
|
| |
|
| Specification: |
SERVICE LIMITS:
|
Style |
1410 |
|
Pressure |
Rotating |
20 bar |
|
Reciprocating |
150 bar |
|
Static |
250 bar |
|
Shaft speed |
25 m/s |
|
Density |
1.6g/cm3 |
|
Temperature |
-150~+280oC |
|
PH range |
0~14 |
FORMS OF SUPPLY:
in coils of 2 to 5 kg, other weight on request;
as precut length;
as prepressed rings---- R2322
|
|
|
