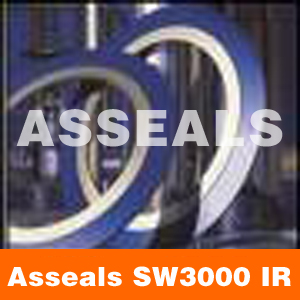

| AS SW3000 IR Spiral wound gasket with inner ring |
| Item: AS SW3000 IR |
| Description: Spiral wound gasket Aiflon Samsung spiral wound gasket (SWG) consists of a thin metallic strip and soft non-metallic filler that are simultaneously wound on a rotating mandrel. the metal hoop is pre-formed with a V or W shaped profile ,which allows the gasket to act as a spring between the flanges. Further, the hoop provides the basic structural element for the gasket while the non-metal filler material seals small imperfections on the flange surfaces. depend on its excellent compression resilient, it’s suitable for sealing spots where the alteration of temperature and pressure are frequent ,such as pipes, valve, pumps etc. they are available in all standard the flanges of sizes, |
PDF:
|
 |
| Hits: 1056 |
|
| |
|
| Specification: |
e.g.ANSI,API,DIN,JIS,JPI,BS etc.
|
Style |
Construction |
Flange |
Hoop material |
Filler |
Inner & outer Material |
Size
(mm) |
Thickness (mm) |
|
Material |
Code |
V |
W |
|
3000 |
Basic type |
Tongue and Groove |
304,304L
316,316L
321,Ta
Mon400
Inconel etc. |
Asbestos
Graphite
PTFE
Mica
Ceramic |
ASB
FG
PTFE
MICA
CER |
Carbon steel,304,
304L,321
316L,Ta
Mon400
Inconel |
16-3000 |
3.2
4.5 |
4.8
5.5
7.5 |
|
3000 IR |
With inner ring |
Male and Female |
|
3000 OR |
With outer ring |
Raised face Flat face |
|
3000 IOR |
With inner, outer ring |
|
3000 H |
For heat exchanger |
Heat exchanger |
|
|
|
