APPLICATION :
Made for various gaskets.
Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges.
Temperature: -200 up to 550oC
Pressure: up to 200 bar
PH Range: 0 - 14
PROPERTIES :
Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.
RESISTANCE TO MEDIA :
steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.
FORMS OF SUPPLY:

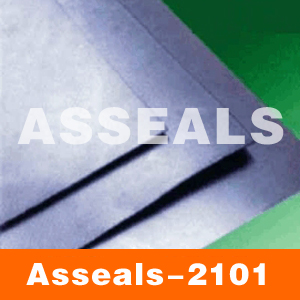

Sheets
Gasket: G2101
Gasket with inner eyelet: G2101-IE
Gasket with inner & outer eyelets: G2101-IOE
STANDARD DIMENSION:
1000 x 1000 x1.0 ; 1.5 ; 2.0 ; 3.0mm
1500 x 1500 x1.0 ; 1.5 ; 2.0 ; 3.0mm
1500 x 1000 x1.0 ; 1.5 ; 2.0 ; 3.0mm
Gaskets cut to size (full or segment)
Special density, thickness or insert materials available on request.
|
