PROPERTIES & APPLICATION:
|
Style |
Products |
Tensile Strength |
Pressure
Mpa |
Density
g/cm3 |
Temperature
oC |
|
2300 |
PTFE Sheet |
15Mpa |
10 |
2.1~2.3 |
-100 ~ 250 |
|
2300F |
Filled-PTFE Sheet |
10Mpa |
16 |
2.1~2.3 |
-100 ~ 260 |
|
2300E |
EPTFE sheet |
According to manufacturer |
Seal materials, electrical insulation parts, lining, oil less lubricating materials etc.
NORMAL DIMENSION:

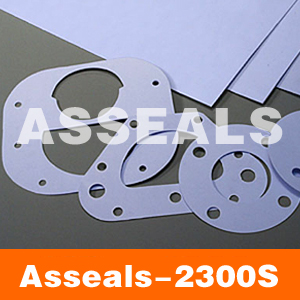

Cut gaskets ---G2300, G2300S
|
Size(mm) |
Thickness(mm) |
tolerance (+-) |
|
150X150 |
1.0~30 |
0.30~0.50 |
|
250X250 |
1.5~30 |
0.30~0.50 |
|
300X300 |
1.5~30 |
0.30~0.50 |
|
450X450 |
1.5~30 |
0.30~0.50 |
|
600X600 |
1.5~30 |
0.30~0.50 |
|
800X800 |
1.5~30 |
0.30~0.50 |
|
1000X1000 |
1.5~30 |
0.30~0.50 |
|
1200X1200 |
2~30 |
0.30~0.50 |
|
1000X2000 |
3~35 |
0.30~0.60 |
|
1500 X 1500 |
3~35 |
0.30~0.60 |
|
2000 X 2000 |
5~35 |
0.30~0.60 | Dimensions according to drawings or specifications and standards
|
