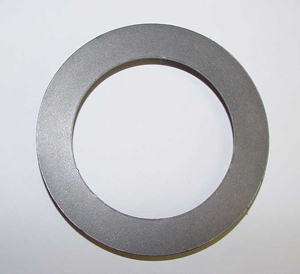

GYLON® Style 3530
Item: GYLON® Style 3530
Description: GYLON® Restructured PTFE gasketing with excellent chemical resistance. Significantly reduces creep relaxation problems typical of conventional PTFE.
PDF:
Hits: 1185

Specification:
Benefits

Tighter seal

  • Graphite-filled PTFE offers extremely low void content for minimal emissions
  • Black GYLON® delivers long service against volatile hazardous pollutants (VHAP and VOC)
  • Withstands high concentrations of hydrofluoric acids and other glass-dissolving media
Media
  • Monomer service, cryogenics, highly concentrated hydrofluoric acid, volatile hazardous air pollutants (VHAP)



Specifications

Min. Temperature: -450 (° F)
Max. Temperature: 500 (° F)
Max. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (° F x PSIG)
Maximum PxT 1/8 : 250,000 (° F x PSIG)
