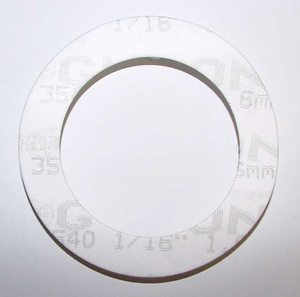

| GYLON® Style 3540 |
| Item: GYLON® Style 3540 |
| Description: GYLON®
Restructured PTFE gasketing with excellent chemical resistance. Significantly reduces creep relaxation problems typical of conventional PTFE. |
PDF:
|
 |
| Hits: 1520 |
|
| |
|
| Specification: |
|
Benefits
Tighter seal
- Highly compressible PTFE outer layers seal under low bolt load-suitable for many non-metallic flanges*
- Compressible layers conform to surface irregularities, especially on warped, pitted or scratched flanges
- Rigid PTFE core reduces cold flow and creep normally associated with conventional PTFE gaskets
Excellent chemical compatibility
- Pure PTFE withstands a wide range of chemicals
Easy to cut and install
- Soft PTFE can be cut easily from larger sheets, reducing inventory costs and expensive downtime
- Rigid PTFE core facilitates installation, especially on large diameter flanges and hard-to-reach areas
Media
- GYLON® 3540:Strong caustics, strong acids, hydrocarbons, chlorine, cryogenics, glasslined equipment
- GYLON® 3545:Strong caustics, strong acids, hydrocarbons, chlorine, cryogenics, glasslined equipment, plastic piping,* low bolt load applications
|
|
| |
|
|
| Min. Temperature: |
-450 (° F) |
| Max. Temperature: |
500 (° F) |
| Max. Pressure: |
1200 (PSI) |
| Maximum PxT 1/16: |
350,000 (° F x PSIG) |
| Maximum PxT 1/8 : |
250,000 (° F x PSIG) | | | |
|
|
