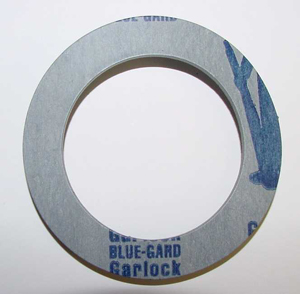

Description: BLUE-GARD® Gasketing material made from a unique blend of fibers, fillers, and a choice of several elastomeric binders. Excels in a wide range of industrial applications.

PDF:

Hits: 1058

Specification:

Style 3400

Aramid fibers with a SBR binder.

-Benefits

Excellent sealability

Unique blend of aramid fibers, fillers and a SBR rubber binder provides improved torque retention and drastically lowered emissions levels

Cost savings

Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption

-Media

Water
Saturated steam

Inert gases

Specifications

Min. Temperature:	-100 (° F)
Max. Temperature:	400 (° F)
Max. Pressure:	1200 (PSI)
Maximum PxT 1/16:	350,000 (° F x PSIG)
Maximum PxT 1/8 :	250,000 (° F x PSIG)
