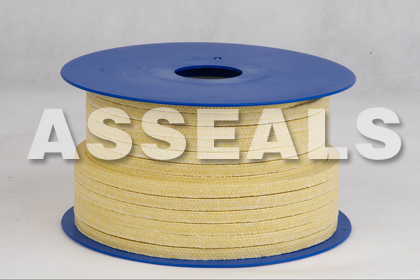

 Braided from high quality aramide fibres with PTFE-Impregnation and lubricant additive. Extremely hard wearing. It shows good chemical resistance, high elasticity and very low cold flow. It is wear resistant but may damage the shaft if not used properly. A minimum shaft hardness of 60HRC is therefore recommended. Compared with other kinds of packing, it can resist more severe media and higher pressure. The packing is also lubricated with a silicone-based compound for quick and easy break-in. ASSEALS 2200L Aramid fiber packing with an inert lubricant
An extremely durable, highly abrasive resistant packing, It is ideal for slurry service application.
APPLICATION:
It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. It is also a durable packing able to withstand granular and abrasive applications, it is recommended for serve in superheated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids.
For hot water applications it can be used uncooled up to 160¡ãC.
It can be used as stand-alone packing also combined with others as anti-extrusion ring.
SERVICE LIMITS:
|
|
Rotating |
Reciprocating |
Static |
|
Pressure |
25 bar |
100 bar |
200 bar |
|
Shaft speed |
25 m/s |
1.5 m/s |
|
|
Temperature |
-100~+280¡ãC |
|
PH range |
2~12 |
|
Density |
Appr. 1.4g/cm3 |
FORMS OF SUPPLY:
in coils of 2 to 5 kg, other package on request.
as prepressed rings----R2200(L)
as precut length
STOCK DIMENSIONS:
|
Size mm |
6 |
8 |
10 |
12 |
12.7 |
14 |
15 |
16 |
18 |
20 |
22 |
|
appr. m/kg |
19.0 |
11.0 |
7.0 |
4.8 |
4.3 |
3.5 |
3.1 |
2.7 |
2.1 |
1.75 |
1.42 |
|
Appr. ft/lb |
28.3 |
16.4 |
10.4 |
7.1 |
6.4 |
5.2 |
4.6 |
4.0 |
3.1 |
2.6 |
2.12 |
|
kg/coil |
2 |
5 |
ASSEALS 2204 Nomex Fiber Packing`
Braided from high quality staple Nomex yarns with PTFE-Impregnation and lubricant additive. High cross-sectional density and structural strength, good sliding characteristic, gentle on shaft surfaces. 2204S Nomex staple fiber packing
ASSEALS 2204SC Nomex Fiber Packing with Silicon rubber core
High elastic rubber core can absorb vibration, to control leakage.
APPLICATION:
A universal, wear-resistant packing that is nevertheless gentle to shaft surface. Designed specially for pumps, agitators, mixers, kneaders, refiners etc. It¡¯s excellently suitable for standardization in entire industrial sectors, e.g. pulp and paper, sugar production, breweries, sewage systems, water conditioning for power stations, for cooling water and abrasive river water, in turbine oil circuits, and other areas requiting a clean, and easy-to-install packing.
2204SC, especially for those machines with severe vibration.
SERVICE LIMITS:
|
|
Rotating |
Reciprocating |
Valve |
|
Pressure |
25 bar |
50 bar |
100 bar |
|
Shaft speed |
20 m/s |
2 m/s |
2 m/s |
|
Temperature |
-100~+280¡ãC |
|
PH range |
1~13 |
|
Density |
Appr. 1.3g/cm3 |
FORMS OF SUPPLY:
in coils of 2 to 5 kg, other package on request.
as prepressed rings----R2204(SC)
as precut length
STOCK DIMENSIONS:
|
Size mm |
6 |
8 |
10 |
12 |
12.7 |
14 |
15 |
16 |
18 |
20 |
25 |
|
appr. m/kg |
21.0 |
12.0 |
7.4 |
5.1 |
4.7 |
3.8 |
3.3 |
2.9 |
2.3 |
1.9 |
1.2 |
|
Appr. ft/lb |
31.2 |
17.8 |
11.0 |
7.6 |
7.0 |
5.6 |
4.9 |
4.3 |
3.4 |
2.8 |
1.8 |
|
kg/coil |
2 |
5 |
2220 White PTFE Packing with Aramid Corners
Muti-yarn packing, the corners of packing are made of aramid yarns impregnated with PTFE, while the friction faces are made of pure PTFE yarns. This structure enhances the lubrication ability of aramid fiber and improves the strength of the pure PTFE.
2222 White PTFE & Aramid in Zebra Braided Packing
Muti-yarn in zebra braided packing consisting of pure PTFE and araimid.
2230 Graphited PTFE Packing with Aramid Corners
Interlock braid of graphited PTFE with aramid yarn on the corners. This improve resistance in higher pressure applications. It has excellent sliding velocity and thermal conductivity compared to 2220
2232 Graphited PTFE & Aramid in Zebra Braided Packing
Compared to 2222, it has excellent lubrication ability and thermal conductibity.
APPLICATION:
|
2220 2222 |
Designed for high pressure reciprocating pumps, medium speed centrifugals and valves. It can be used for general service steam, gases, solvents, mild acids, alkalis and most abrasive liquids. The packing will not stain in pulp & paper mill, pharmaceutical, food and sugar industries. |
|
2230
2232 |
Offers the strength of aramid fibers , the thermal dissipating and low friction property of graphited PTFE. Used in reciprocating pumps, mixers, reactors and valves for petrochemical, paper and sugar industries , power stations. |
SERVICE LIMITS:
|
Style |
2220, 2222 |
2230, 2232 |
|
Pressure |
Rotating |
20 bar |
25 bar |
|
Reciprocating |
100 bar |
150 bar |
|
Static |
180 bar |
200 bar |
|
Shaft speed |
12 m/s |
15m/s |
|
Temperature |
-100~+280¡ãC |
-150~+280¡ãC |
|
H range |
2~12 |
FORMS OF SUPPLY:
in coils of 2 to 5 kg, other weight on request; as precut length;
as prepressed rings----R2220,R2222,R2230,R2232
STOCK DIMENSIONS:
|
Size mm |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
|
appr. m/kg |
35 |
25 |
15 |
10 |
7.0 |
4.0 |
3.6 |
2.8 |
2.3 |
1.8 |
1.4 |
1.1 |
|
Appr. ft/lb |
55 |
38 |
22 |
15 |
11 |
6.0 |
5.5 |
4.2 |
3.5 |
2.8 |
2.1 |
1.6 |
|
kg/coil |
2 |
5 | |
