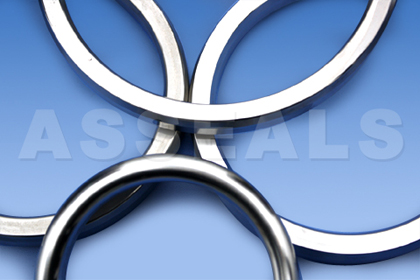

Ring Joint Gaskets

Ring Joint Gaskets
Our API No. Is 6A-0881

Description:
ASSEALS RTJ 640

Ring Joint Gaskets

(Metal interface gasket), a variety of solid metal through the high-precision processing by CNC lathe, the main form is oval, octagonal, etc.Applicable to a variety of high-temperature ,high pressure,corrosive work conditions, in the pressure vessel, valve,cylinder seals and other parts of the application to build more, smaller regions is installed, the high pre-compression. In petroleum, chemical industry,widely used in smeltiing and other industries.
Material Selection:
Materials
Marking
Hardness HB
Temperature oC
Carbon Steel
API 6A-0881 SI R**
90
530
Soft Iron
API 6A-0881 CS R**
120
530
304(L),316(L),321
API 6A-0881 SS304 R**
160
750
5Cr1/2Mo (F5)
API 6A-0881 F5 R**
130
500
Cooper
API 6A-0881 Cu R**
50
400
Aluminum
API 6A-0881 Al R**
30
300
In accordance with the requirements of different operating conditions, choice of zinc or chrome.
Related Standards:
RJG Type
RJG Standards
Flange Standards
R
ASME B 16.20 API 6A
ANSI B 16.5 ANSI B 16.47A
RX
ASME B 16.20 API 6A
API 6 B
BX
API 6A
API 6 BX
Products can be customized according to the drawing, we can produce monel,inconel and other special material products.
